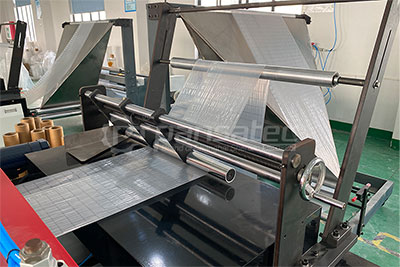

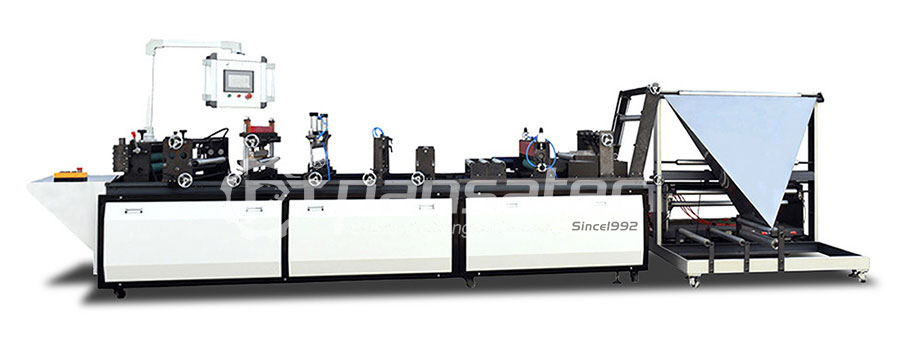

Air Column Bag Making Machine
- Type L
- Type U
- Type Q
Features
- Output up to 50 bags per minute;

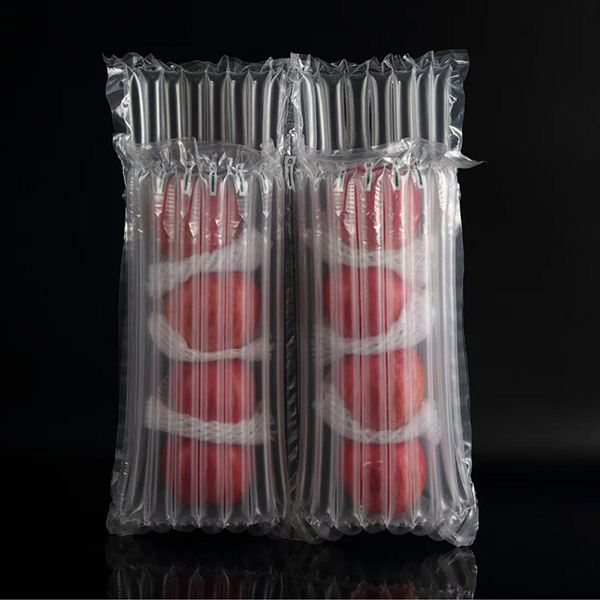

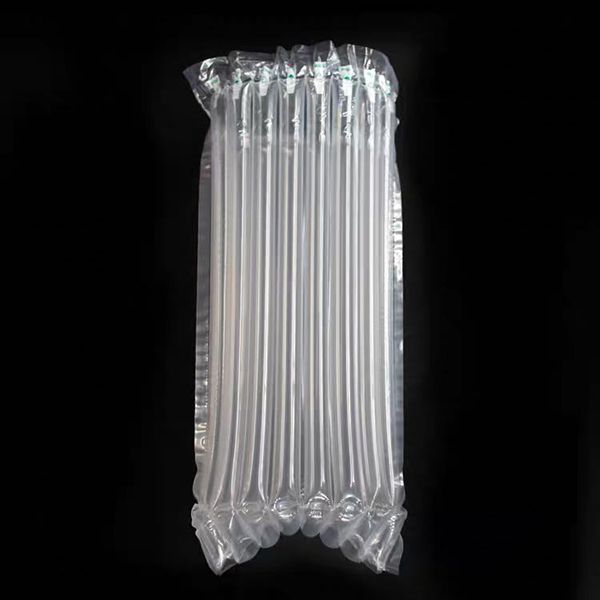

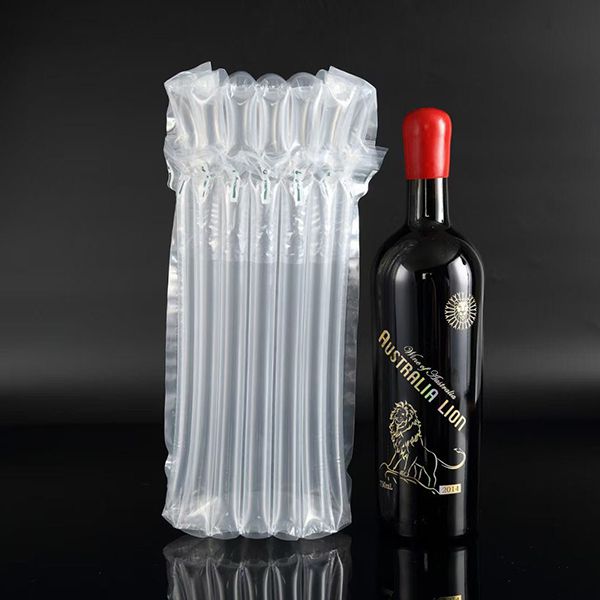

- Produced air column bags are typically used for protective packaging, like inflatable bottle packaging;
- Able to produce air column bags with various types, including Type U, Type L and Type Q;
- Using PE/PA co-extruded film as raw material, suitable for fragile items;
- All electrical components are from world's well-known brands, guaranteeing high stability of the machine;
- PLC control with touch screen, user friendly;
Details
Specifications
Model | PT-ACB-800 |
Output | 50 bags/min |
Max. roll width | 1200mm |
Max. roll diameter | 600mm |
Weight | 2700kg |
Dimension (L×W×H) | 4.1×1.3×1.4m |
Max. power | 12kW |
Voltage | 380V, three phase, 50HZ, four wire |
Material | PE/PA co-extruded film |
Get in Touch
Protective packaging is no mystery in playing the most important role across many industries due to its function in keeping fragile or sensitive items safe from damages. In response to the market needs, since the foundation in 1992, Pansatec has been investing on the innovation of plastic film machine and plastic bag converting machine for applications of inflatable packaging and air-cushion packaging. Our engineers have developed a wide variety of customized bubble film machines such as bubble film extrusion lines equipped with either single screw extruder or twin screw extruder, plastic film laminating machine, plastic bag making machine, poly mailer machine, and more inflatable packaging equipment to produce high quality bubble film bags, air cushion films, bubble padded mailers, bottle protectors, inflatable cushioning materials and radiant barrier films, which can offer excellent protection or reflective insulation for customer individual needs.
