Air Bubble Bag Making Machine, 2-side Sealing

Air Bubble Bag Making Machine, 2-side Sealing
Request a quote
  • Air Bubble Bag Making Machine, 2-side Sealing
  • Air Bubble Bag Making Machine, 2-side Sealing
  • Air Bubble Bag Making Machine, 2-side Sealing
Features
  • Adopting high-stability electric control and transmission system, ensuring smooth operation;
  • Output up to 220 bags per minute;
  • Advanced mechanical design saves your maintenance cost;
  • The air bubble bag machine can be custom-manufactured, accommodating your individual demands of bubble pouch production;
  • Easy to operate, user can operate the equipment with only one-hour training;
Details

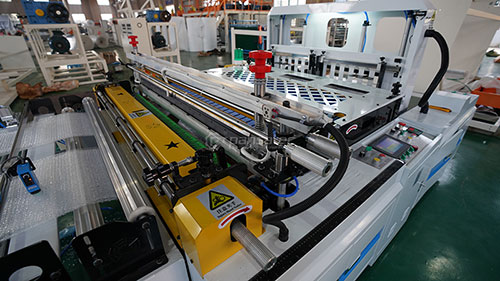

  • Air Bubble Bag Making Machine, 2-side Sealing

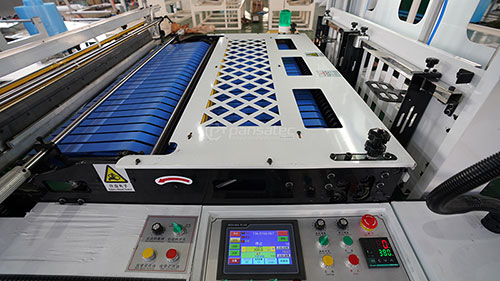

  • Air Bubble Bag Making Machine, 2-side Sealing
Specifications

Model: PTZD-S2-600
Bag depth (with flap) (mm): 100-550
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 4.5
Dimension (L×W×H) (m): 5.00×1.20×1.5
Weight (kg): 1000

Inquiry

Model: PTZD-S2-800
Bag depth (with flap) (mm): 100-750
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 6
Dimension (L×W×H) (m): 5.50×1.40×1.75
Weight (kg): 1100

Inquiry

Model: PTZD-S2-1000
Bag depth (with flap) (mm): 100-950
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 7
Dimension (L×W×H) (m): 6.00×1.60×2.00
Weight (kg): 1200

Inquiry

Model: PTZD-S2-1200
Bag depth (with flap) (mm): 100-1150
Bag width (mm): 60-2000
Output (bags/min): 20-220
Power (kW): 9
Dimension (L×W×H) (m): 6.50×1.80×2.20
Weight (kg): 1300

Inquiry
Model PTZD-S2-600 PTZD-S2-800 PTZD-S2-1000 PTZD-S2-1200
Bag depth (with flap) (mm) 100-550 100-750 100-950 100-1150
Bag width (mm) 60-2000 60-2000 60-2000 60-2000
Output (bags/min) 20-220 20-220 20-220 20-220
Power (kW) 4.5 6 7 9
Dimension (L×W×H) (m) 5.00×1.20×1.5 5.50×1.40×1.75 6.00×1.60×2.00 6.50×1.80×2.20
Weight (kg) 1000 1100 1200 1300
Get in Touch
Protective packaging is no mystery in playing the most important role across many industries due to its function in keeping fragile or sensitive items safe from damages. In response to the market needs, since the foundation in 1992, Pansatec has been investing on the innovation of plastic film machine and plastic bag converting machine for applications of inflatable packaging and air-cushion packaging. Our engineers have developed a wide variety of customized bubble film machines such as bubble film extrusion lines equipped with either single screw extruder or twin screw extruder, plastic film laminating machine, plastic bag making machine, poly mailer machine, and more inflatable packaging equipment to produce high quality bubble film bags, air cushion films, bubble padded mailers, bottle protectors, inflatable cushioning materials and radiant barrier films, which can offer excellent protection or reflective insulation for customer individual needs.
